สายไฟ FD-0.6/1 KV-CV-STA

FD-0.6/1 KV-CV-STA

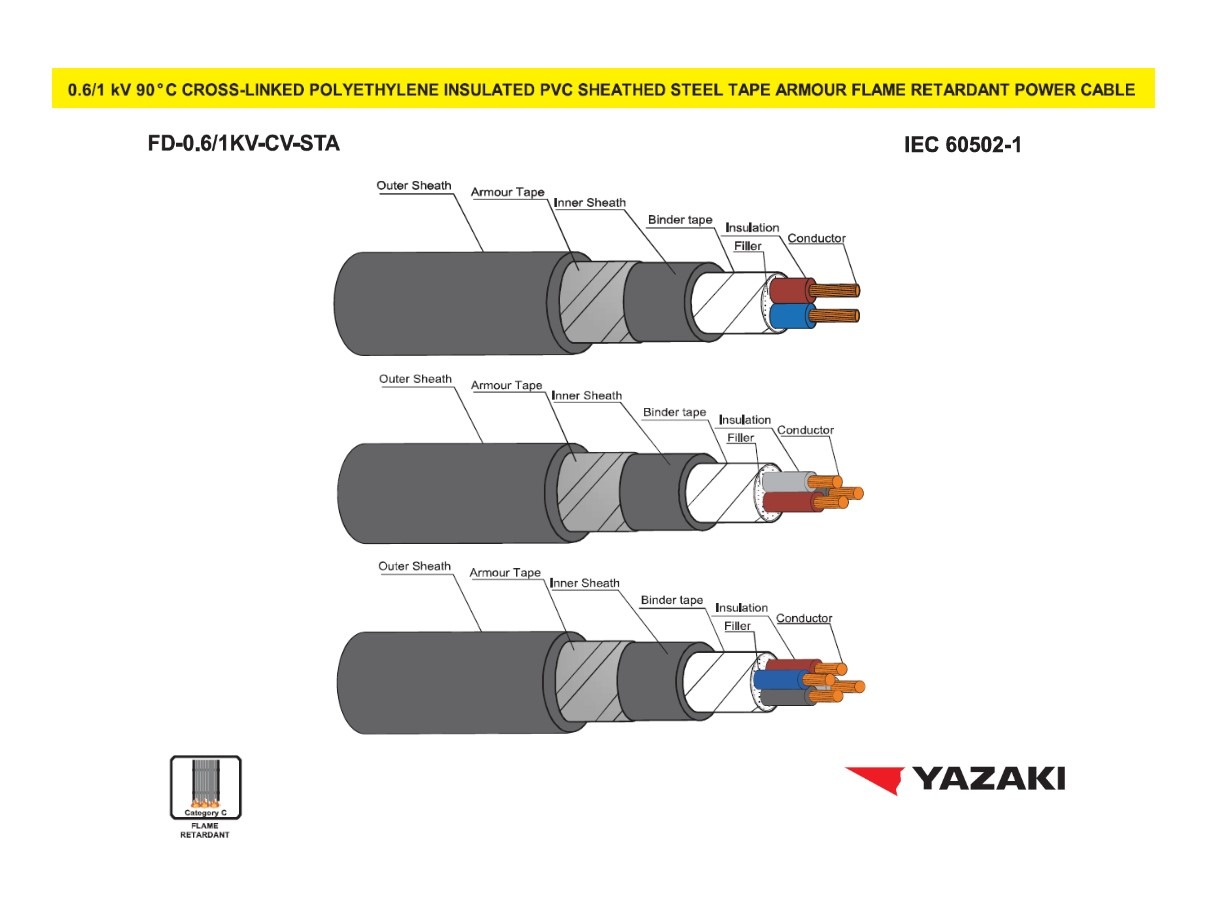

0.6/1 KV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED STEEL TAPE ARMOUR FLAME RETARDANT POWER CABLE

สายไฟ THAI YAZAKI FD-0.6/1 KV-CV-STA , ทนแรงดัน 0.6/1 KV, ทนอุณหภูมิ 90°C

0.6/1 KV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED STEEL TAPE ARMOUR FLAME RETARDANT POWER CABLE

Conductor	: Non-compacted and compacted round annealed copper : Multi-core : Size 1.5 mm² up to 400 mm²
Insulation	Cross-linked Polyethylene (XLPE)
Core Identification	2 Cores : Blue and Brown 3 Cores : Brown, Black and Grey 4 Cores : Blue, Brown, Black and Grey
Inner Sheath	: Black polyvinyl chloride (PVC)
Outer Sheath	: Black flame retardant polyvinyl chloride(PVC/ST2)
Armour	: Two galvanized flat steel tape
Classification	: Maximum conductor temperature 90°C : Circuit voltage not exceeding 1,200 Volts
Rated Voltage	600 Volts between Line-to-Earth 1,000 Volts between Line-to-Line
Testing Voltage	: 3,500 Volts
Reference Standard	: IEC 60502-1, IEC 60228, IEC 60332-1 : IEC 60332-3-24 ( Cat.C )
