FDLH-0.6/1KV-CE

Code: FDLH-0.6/1KV-CE

สายไฟ THAI YAZAKI FDLH-0.6/1KV-CE

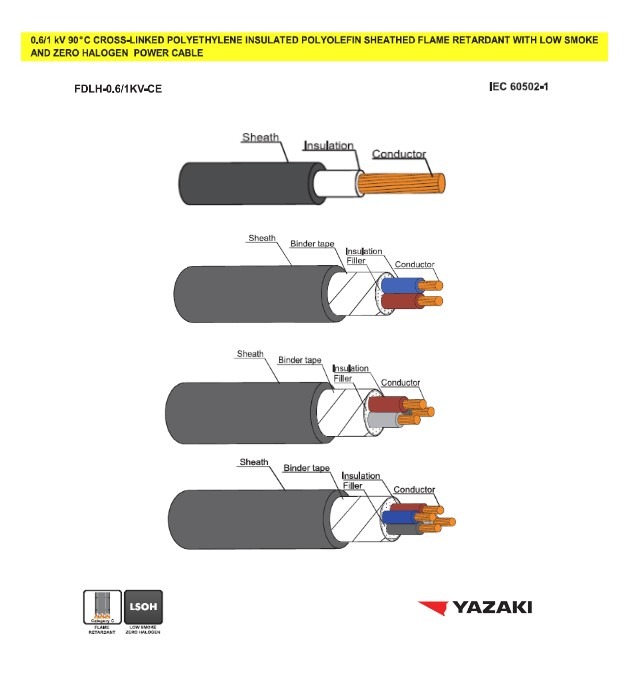

0.6/1 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATEHED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

In Stock

Description

สายไฟ THAI YAZAKI FDLH-0.6/1KV-CE
0.6/1 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATEHED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

Additional information

Conductor

: Non-Compacted and compacted round annealed copper
Single core: Sizes 1.5 mm2 up tp 1000 mm2
Multi cores: Sizes 1.5 mm2 up to 400 mm2

Insulation

: Cross-Linked polyethylene (XLPE)

Core Identification

Single core: Natural ( Translucent)
2 cores: Blue, Brown
3 cores: Brown, Black, Grey
4 cores: Blue, Brown, Black , Grey

Sheath

: Black low smoke and zero halogen flame retardant polyolefin (ST8)

Classification

: Maximum conductor temperature 90°C
: Circuit voltage not exceeding 1,200 volts

Rated Voltage

600 volts between Line to Earth
1,000 volts between Line to Line

Testing Voltage

3,500 volts

Reference Standard

: IEC 60502-1, IEC 60228, IEC 60332-1,
IEC 60332-3-24 (Cat.C), IEC 60754-2, IEC 61034-2
