VCT

Code: VCT

สายไฟ THAI YAZAKI VCT

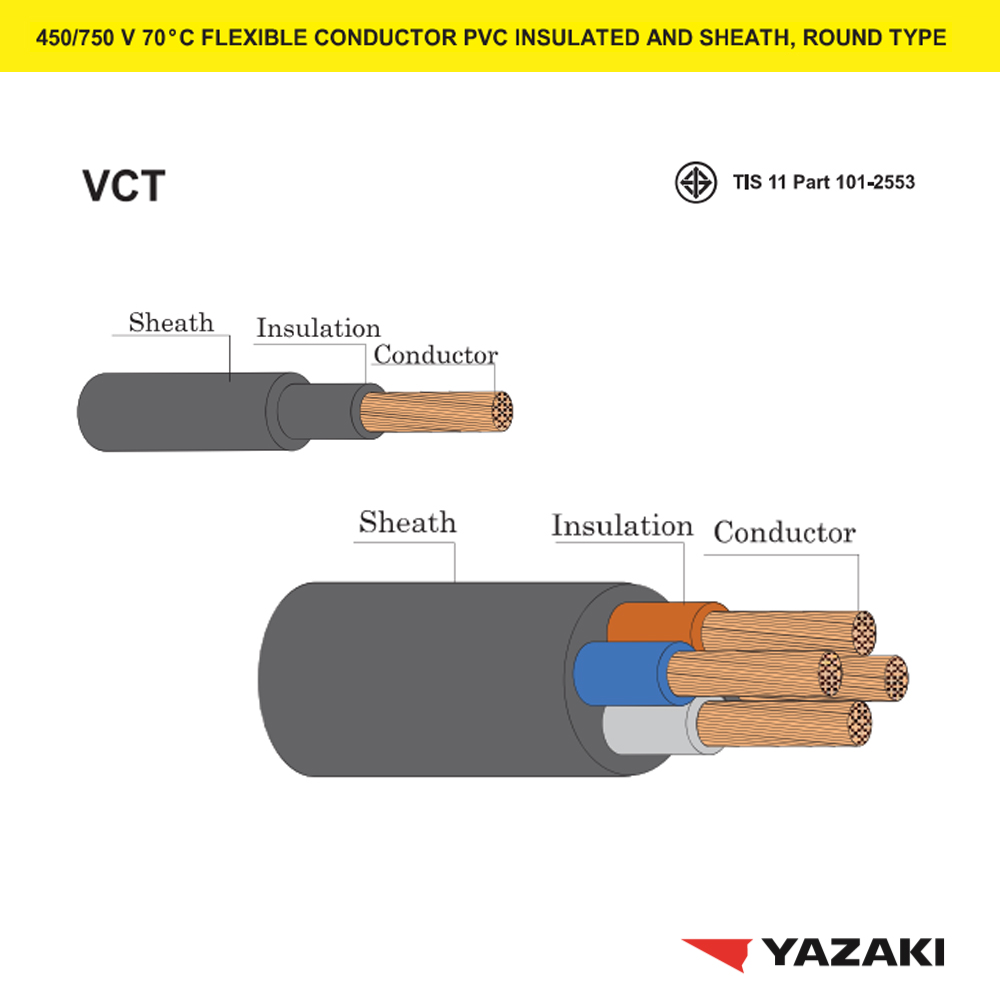

450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE

In Stock

Description

สายไฟ THAI YAZAKI VCT

450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE

Additional information

Conductor

▸ Flexible annealed copper wires
▸ Single core : Size 4 mm ² up to 35 mm²
▸ Multi core: Size 4 mm ² up to 35 mm²

Insulation

Polyvinyl chloride (PVC/D)

Core identification

Single core : Black
2 Cores : Blue and Brown
3 Cores : Brown, black and Grey
4 Cores : Blue, Brown, Black and Grey

Sheath

Black polyvinyl chloride (PVC/ST5)

Classification

▸ Maximum conductor temperature 70°C
▸ Circuit voltage not exceeding 450/750 Volts

Rated voltage

450 Volts between Line-to-Earth
750 Volts between Line-to-Line

Testing voltage

2,500 Volts

Reference standard

TIS 11 Part 5-2553, Table 7
