VCT-G

Code: VCT-G

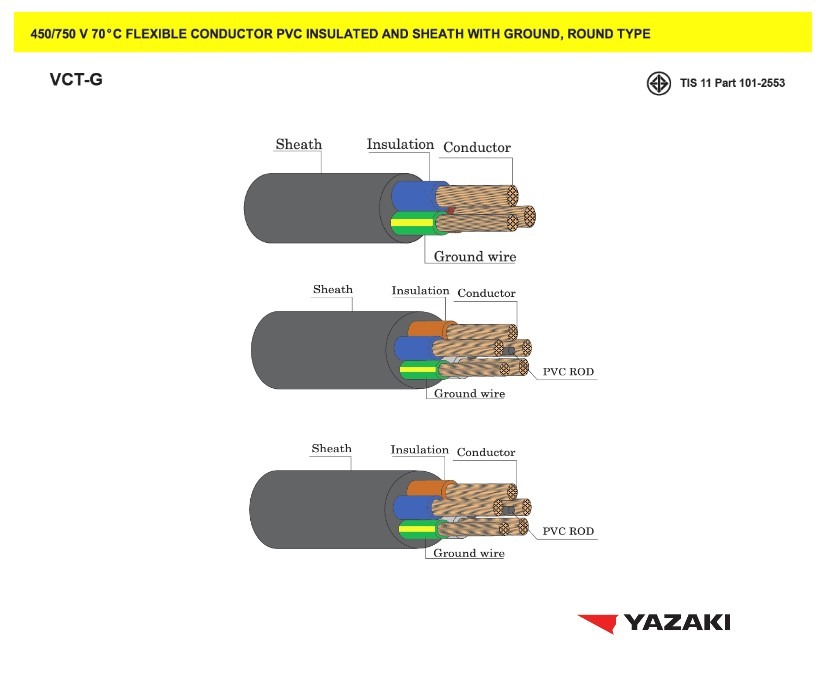

สายไฟ THAI YAZAKI VCT-G

450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED WITH GOUND, ROUND TYPE

In Stock

Description

สายไฟ THAI YAZAKI VCT-G

450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED WITH GOUND, ROUND TYPE

Additional information

Conductor

: Flexible annealed copper wire
: Size 4 mm²  up to 35 mm² for phase wires
: Size 4 mm²  up to 16 mm² for ground wires

Insulation

: Polyvinyl chloride (PVC/D)

Core Identification

2 Cores + Ground : Blue, Brown + Green/Yellow
3 Cores + Ground : Brown, Black and Grey + Green/ Yellow
4 Cores + Ground : Blue, Brown, Black , Grey + Green/Yellow

Outer Sheath

: Black polyvinyl chloride (PVC/ST5)

Classification

: Maximum conductor temperature 70°C
: Circuit voltage not exceeding 450/750 Volts

Rated Voltage

  450 Volts between Line-to-Earth
  750 Volts between Line-to-Line

Testing Voltage

: 2,500 Volts

Reference Standard

: TIS 11 Part 101-2553, Table 8
