FS/LH-0.6/1KV-XLPE ( C )

Code: FS/LH-0.6/1KV-XLPE ( C )

FS/LH-0.6/1KV-XLPE ( C )

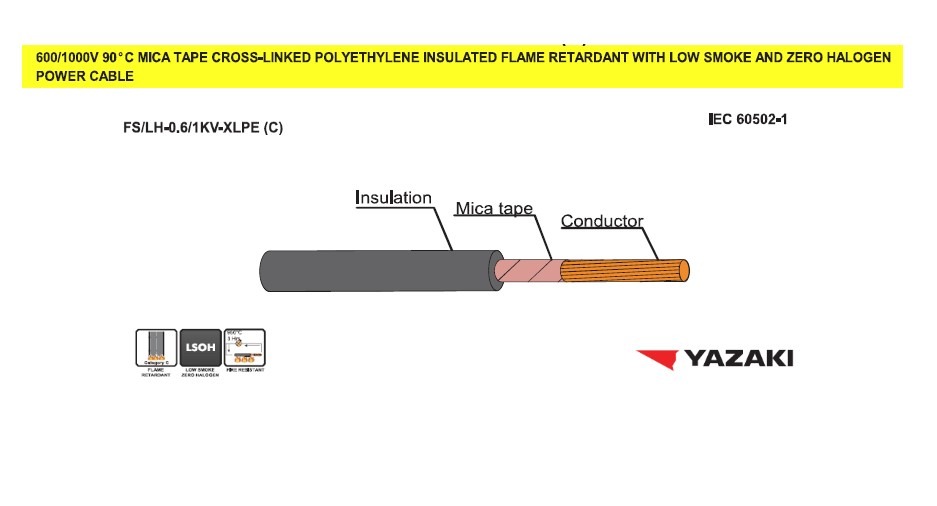

600/1000V 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED LAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

In Stock

Description

สายไฟ THAI YAZAKI FS/LH-0.6/1KV-XLPE ( C )

600/1000V 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED LAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

Additional information

Conductor

: Non-Compacted and compacted round annealed copper
Sizes 1.5 mm2 up to 630 mm2

Fire Barier Tape

Mica tape

Insulation

: Cross-Linked polyethylele (XLPE) with low smoke and zero halogen

Core Identification

Single core : Orange

Classification

: Maximum conductor temperature 90°C
: Circuit voltage not exceeding 600/1000 volts

Rated Voltage

600 volts between Line to Earth
1000 volts between Line to Line

Testing Voltage

3,500 volts

Reference Standard

: IEC 60502-1, IEC 60228, BS 6387 (Cat.CWZ)
IEC 60332-1, IEC 60332-3-24 (Cat.C), IEC 60754-2
IEC 61034-2
