YK FD-0.6/1KV-CV

สายไฟ THAI YAZAKI YK FD-0.6/1KV-CV

0.6/1 kV 90 °C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED PVC SHEATHED FLAME RETARDANT SUPER SOFT POWER CABLE

In Stock

Description

สายไฟ THAI YAZAKI YK FD-0.6/1KV-CV

0.6/1 kV 90 °C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED PVC SHEATHED FLAME RETARDANT SUPER SOFT POWER CABLE

Additional information

Conductor

Non-compacted and compacted round annealed  copper

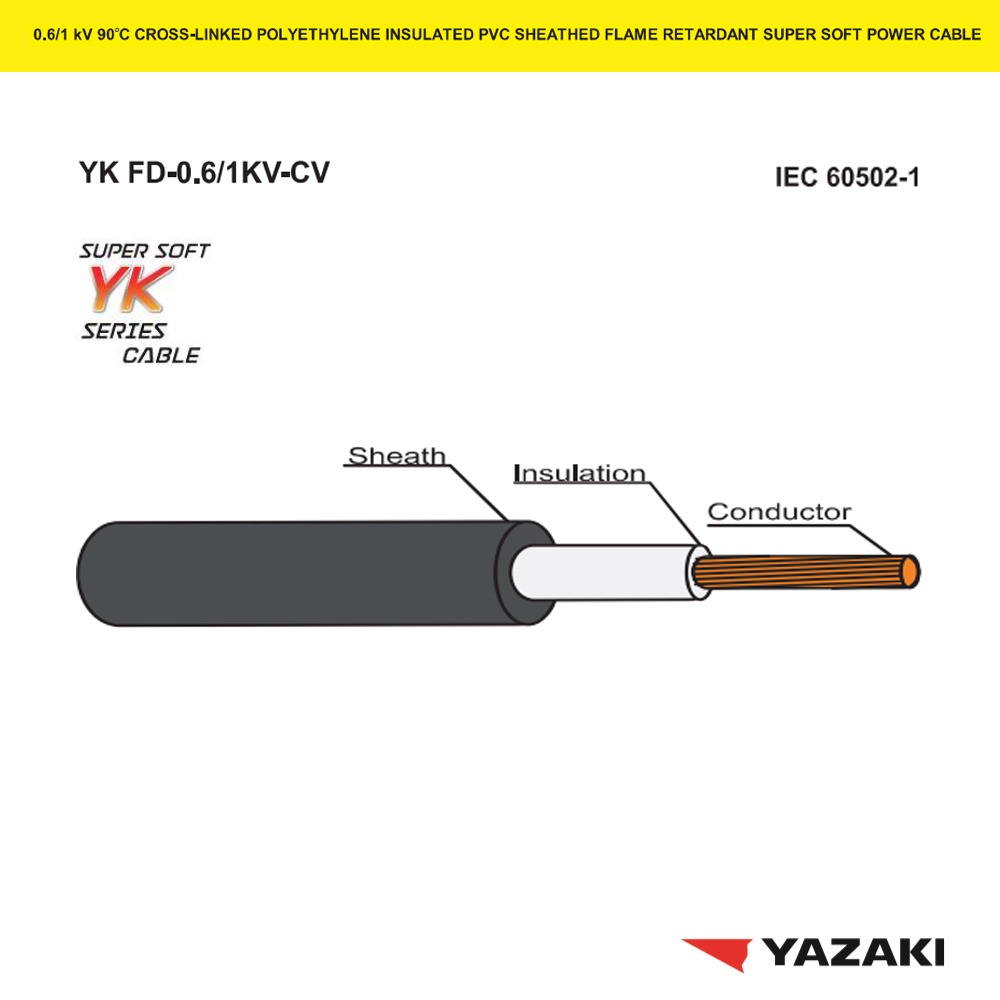

Single-core : Size 2.5 mm²  up to 240 mm²
Multi-core : Size 2.5 mm²  up to 70 mm²

Insulation

▸ Cross-linked Polyethylene (XLPE)
▸ Single-core : Natural (Translucent)

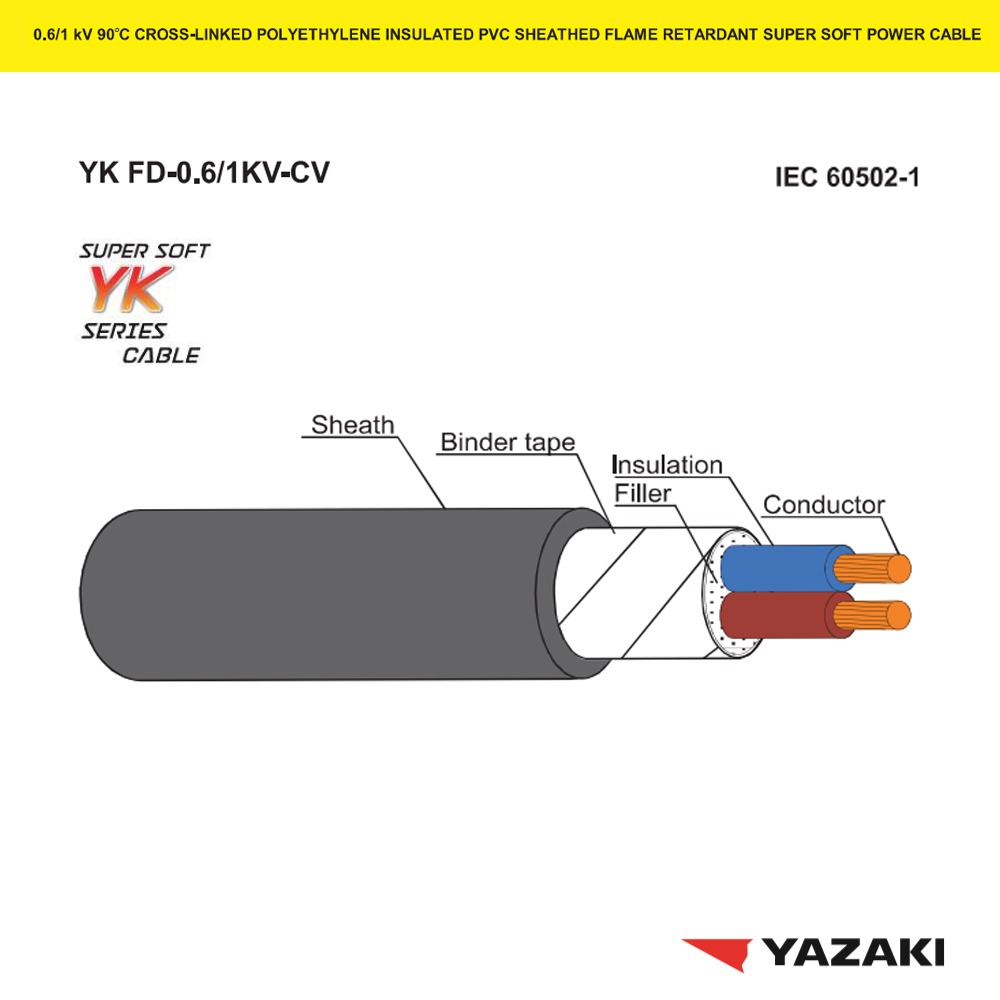

2 Core : Blue and Brown

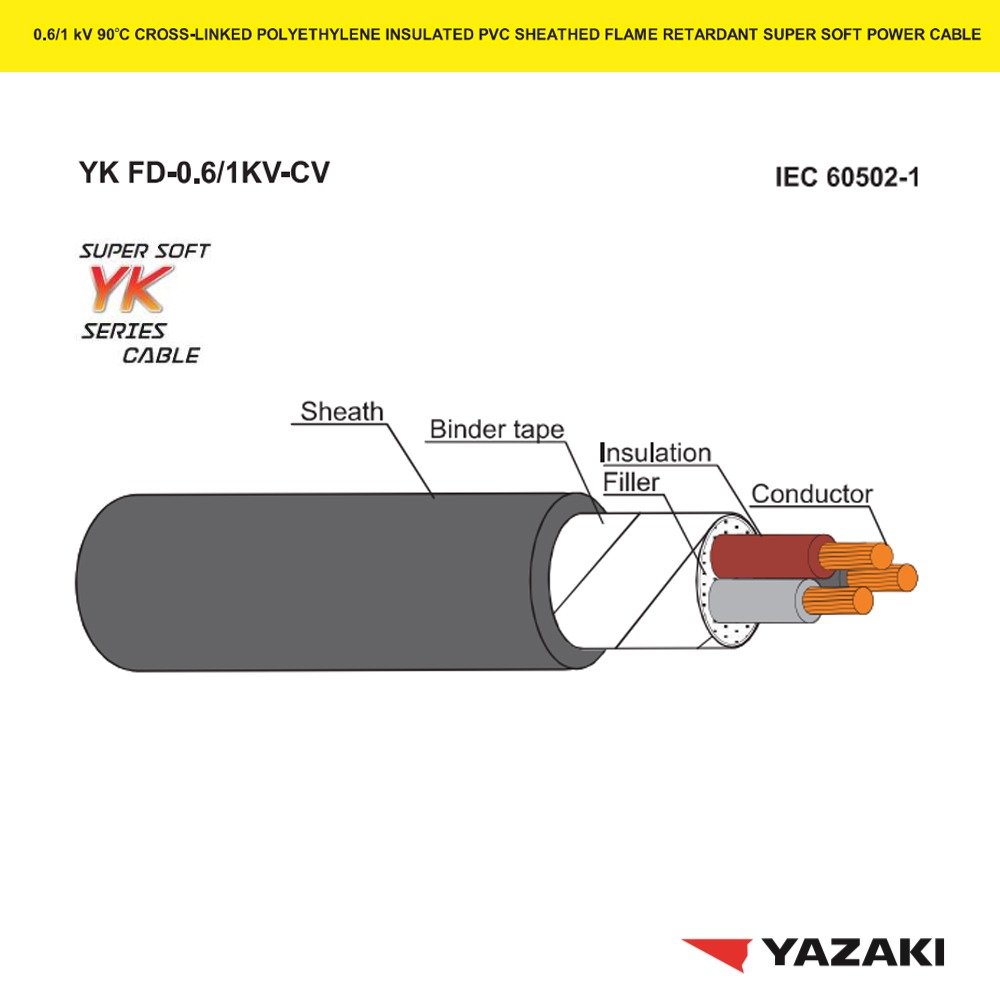

3 Core : Brown, Black and Grey

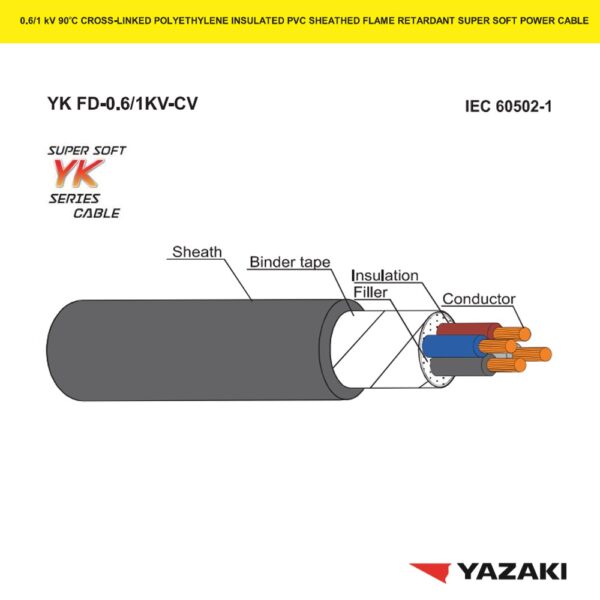

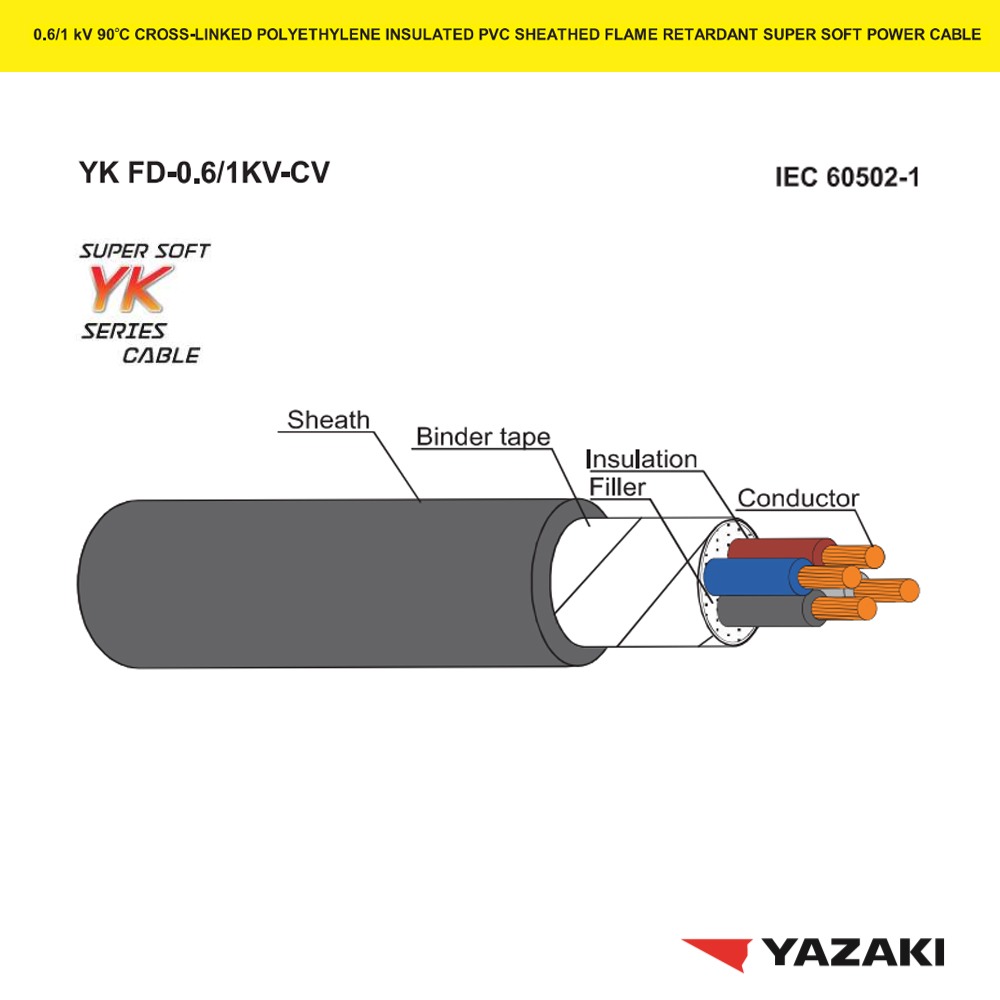

4 Core : Blue, Brown, Black and Grey

Outer sheath

Black flame retardant polyvinyl chloride (PVC/ST2)

Classification

Maximum conductor temperature 90°C
Circuit voltage not exceeding 1,200 Volts

Rated voltage

600 Volts between Line-to-Earth
1,000 Volts between Line-to-Line

Testing voltage

3,500 Volts

Reference standard

IEC 60502-1, IEC 60228, IEC 60332-1
IEC 60332-3-24 (Cat.C)
