FD-0.6/1KV-CV

Code: FD-0.6/1KV-CV

สายไฟ THAI YAZAKI FD-0.6/1KV-CV

0.6/1 kV 90 °C Cross-Linked Polyethylene Insulated PVC Sheated Flame retardant Power cable

In Stock

Description

สายไฟ THAI YAZAKI FD-0.6/1KV-CV

0.6/1 kV 90 °C Cross-Linked Polyethylene Insulated PVC Sheated Flame retardant Power cable

Additional information

Conductor

Non- Concentric and compacted round   annealed copper,
Single-core : Size 1.5 mm²  up to 1,000 mm²
Multi-core : Size 1.5 mm²  up to 400 mm²

Insulation

Cross-linked Polyethylene (XLPE)

Core identification

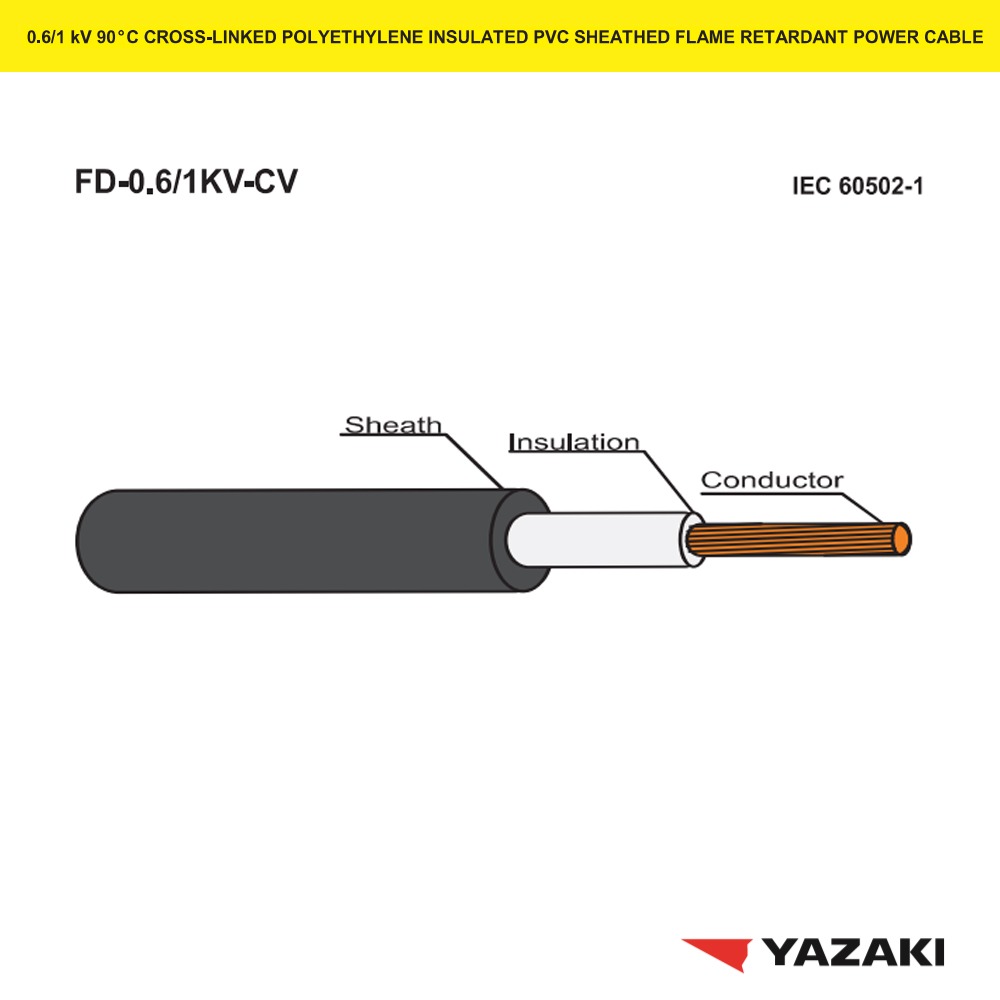

Single-core : Natural (Translucent)
2 Core : Blue and Brown

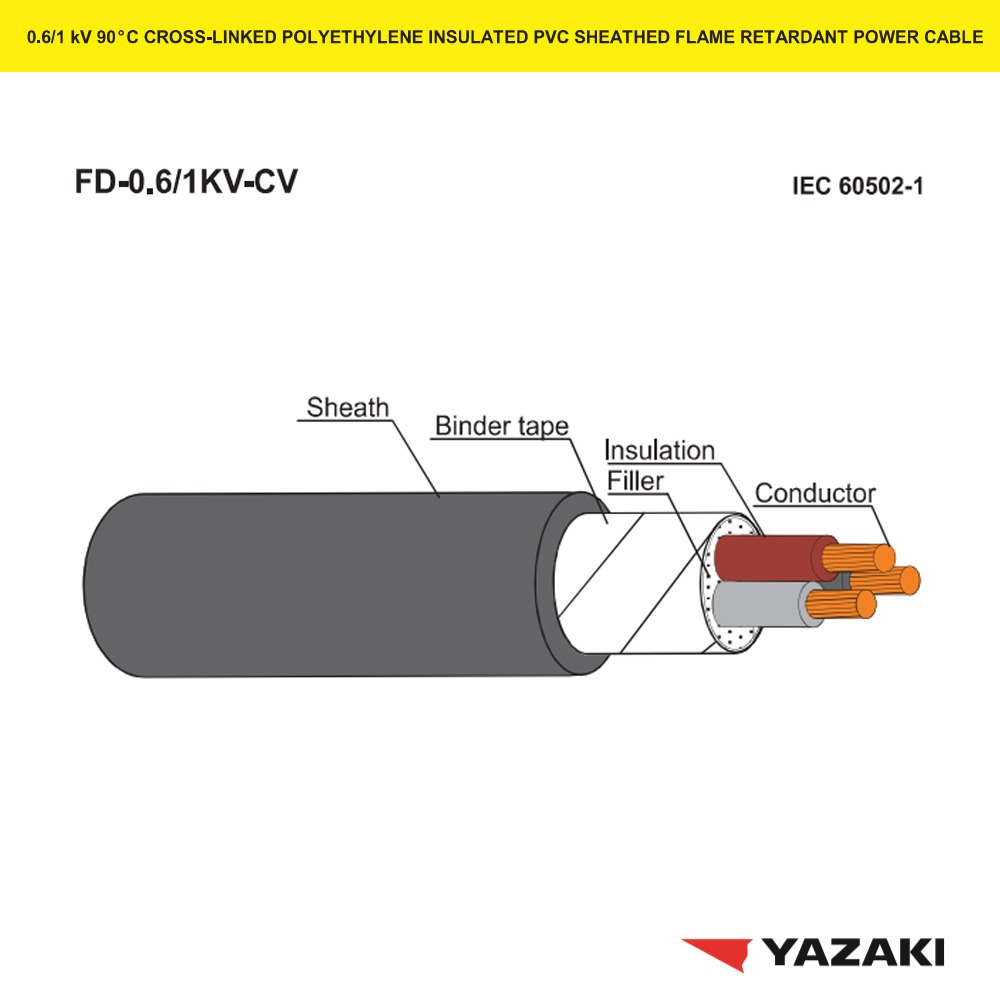

3 Core : Brown, Black and Grey

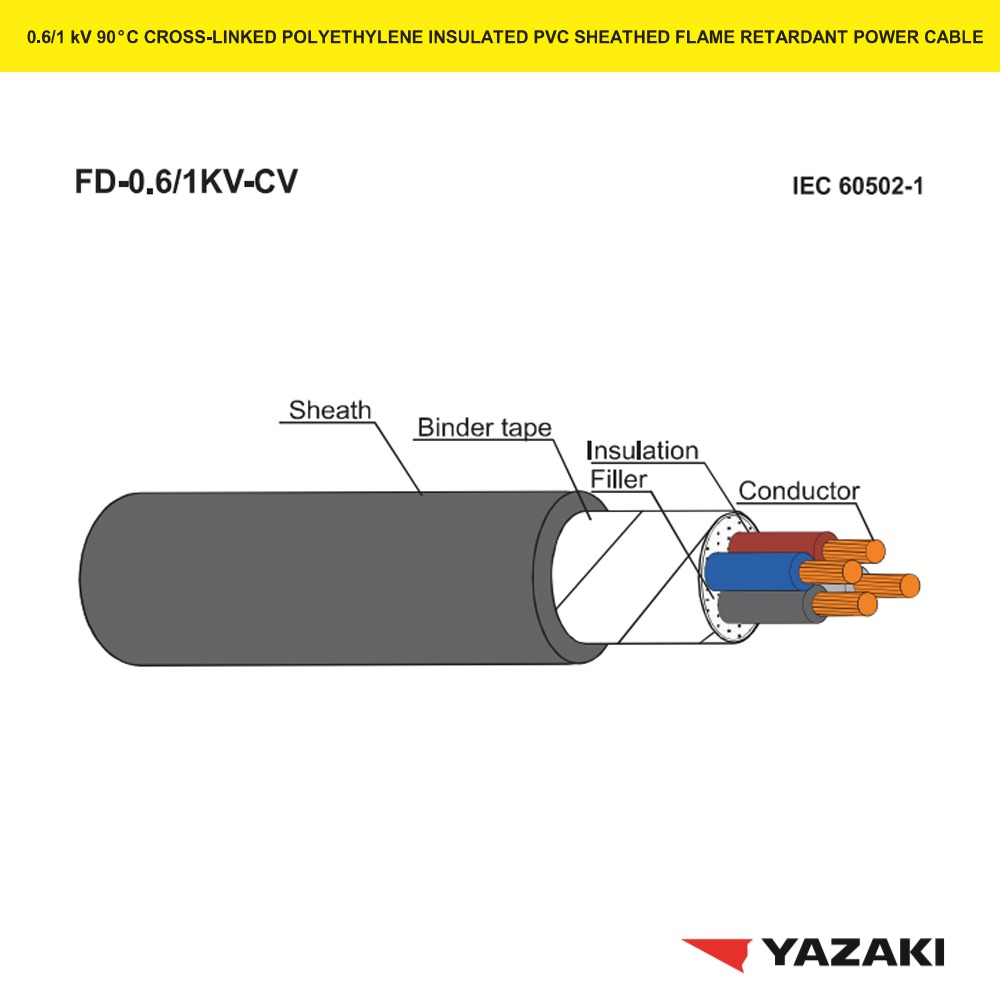

4 Core : Blue, Brown, Black and Grey

Outer sheath

Black flame retardant polyvinyl chloride (PVC/ST2)

Classification

Maximum conductor temperature 90°C
Circuit voltage not exceeding 1,200 Volts

Rated voltage

600 Volts between Line-to-Earth
1,000 Volts between Line-to-Line

Testing voltage

3,500 Volts

Reference standard

IEC 60502-1, IEC 60228, IEC 60332-1
IEC 60332-3-24 ( Cat. C)
