FD-0.6/1KV-CV-AWA

Code: FD-0.6/1KV-CV-AWA

FD-0.6/1KV-CV-AWA

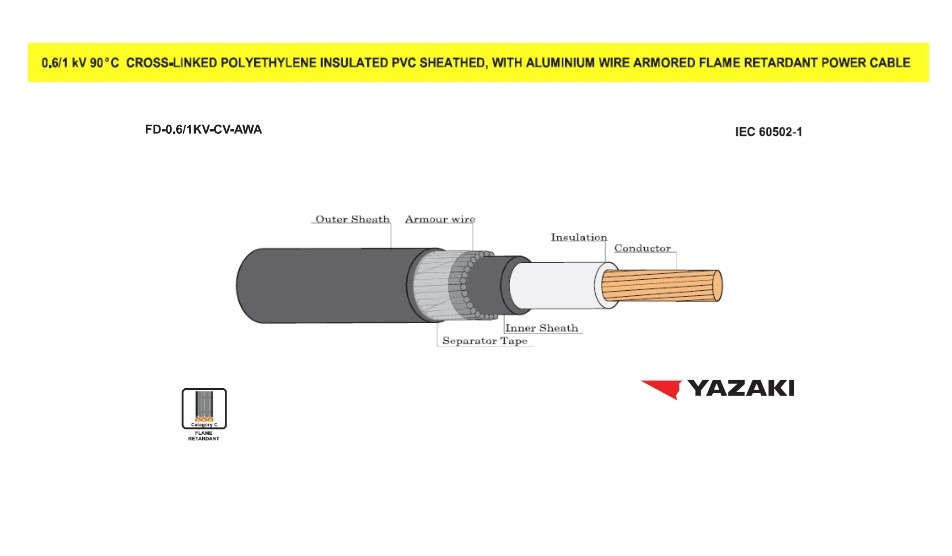

0.6/1 kV 90 °C CROSS -LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH ALUMINIUM WIRE ARMORED FLAME RETARDANT POWER CABLE

In Stock

Description

สายไฟ THAI YAZAKI FD-0.6/1KV-CV-AWA

0.6/1 kV 90 °C CROSS -LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH ALUMINIUM WIRE ARMORED FLAME RETARDANT POWER CABLE

Additional information

Conductor

: Non-compacted and compacted round annealed    copper
 Single-core : Size 1.5 mm²  up to 1,000 mm²

Insulation

: Cross-linked Polyethylene (XLPE)

Core Identification

Single-core : Natural (Translucent)

Inner Sheath

: Black polyvinyl chloride (PVC)

Outer Sheath

: Black flame retardant polyvinyl chloride (PVC/ST2)

Armor

: Aluminium wires

Classification

: Maximum conductor temperature 90°C
: Circuit voltage not exceeding 1,200 Volts

Rated Voltage

: 600 Volts between Line to Earth
: 1,000 Volts between Line to Line

Testing Voltage

: 3,500 Volts

Reference Standard

: IEC 60502-1, IEC 60228, IEC 60332-1
: IEC 60332-3-24(CAT.C)
