500V-NYCY

Code: 500V-NYCY

500V-NYCY

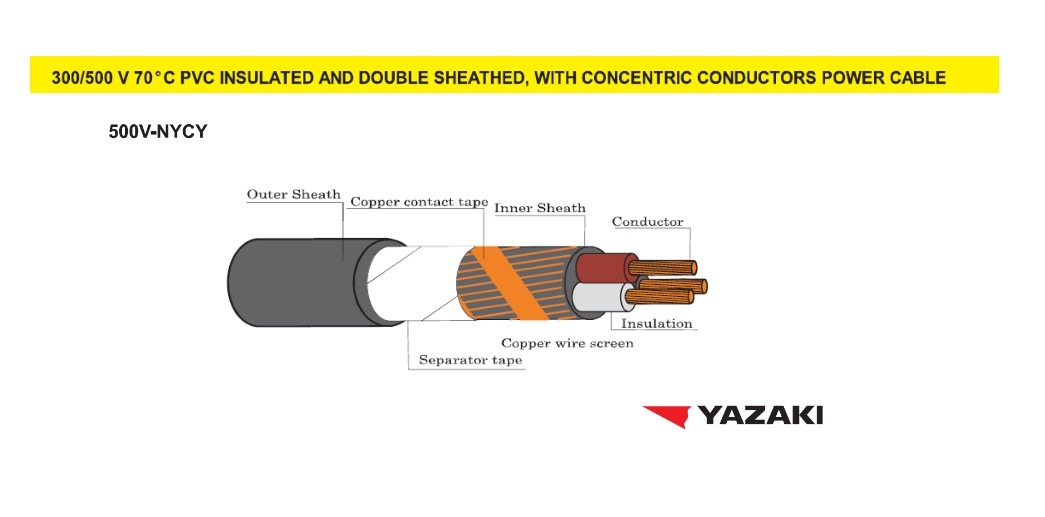

300/500 V 70°C PVC INSULATED AND DOUBLE SHEATHED, WITH CONCENTRIC CONDUCTORS POWER CABLE

In Stock

Description

500V-NYCY

300/500 V 70°C PVC INSULATED AND DOUBLE SHEATHED, WITH CONCENTRIC CONDUCTORS POWER CABLE

Additional information

Conductor

: Solid and Stranded annealed copper wires,
Multi core:  Size 1.5 mm²  up to 35 mm²

Concentric Shield

: Annealed copper wires with helix of copper tape
  fully covers

Insulation

: Polyvinyl chloride (PVC/C)

Core Identification

3 Cores : Brown, Black and Grey

Inner Sheath

: Black polyvinyl chloride (PVC)

Outer Sheath

: Black flame retardant polyvinyl chloride (PVC/ST4)

Classification

: Maximum conductor temperature 70°C
: Circuit voltage not exceeding 300/500 Volts

Rated Voltage

  300 Volts between Line-to-Earth
  500 Volts between Line-to-Line

Testing Voltage

: 2,000 Volts

Reference Standard

: TIS 11 Part 4-2553
