69 KV-CE

Code: 69 KV-CE

69 KV-CE

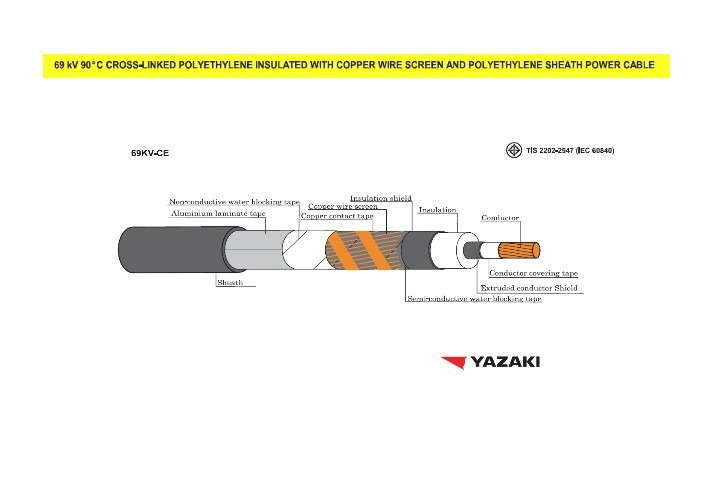

69 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED WITH COPPER WIRE SCREEN AND POLYETHYLENE SHEATH POWER CABLE

In Stock

Description

สายไฟ THAI YAZAKI 69 KV-CE

69 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED WITH COPPER WIRE SCREEN AND POLYETHYLENE SHEATH POWER CABLE

Additional information

Conductor

: Compact concentric stranded uncoated annealed copper conductor,

Single-core : Size 400 mm²  up to 800 mm²

Insulation

: Cross-Linked polyethylene (XLPE)

Core Identification

Single-core : Natural (Translucent)

Outer Sheath

: Polyethylene (PE)

Classification

: Maximum conductor temperature 90°C

Testing Voltage

: 90,000 Volts

Reference Standard

: TIS 2202, TIS 2427
(IEC 60840, IEC 60228)
