FS/FDLH-0.6/1KV-CE-SWA

FS/FDLH-0.6/1KV-CE-SWA

FS/FDLH-0.6/1KV-CE-SWA

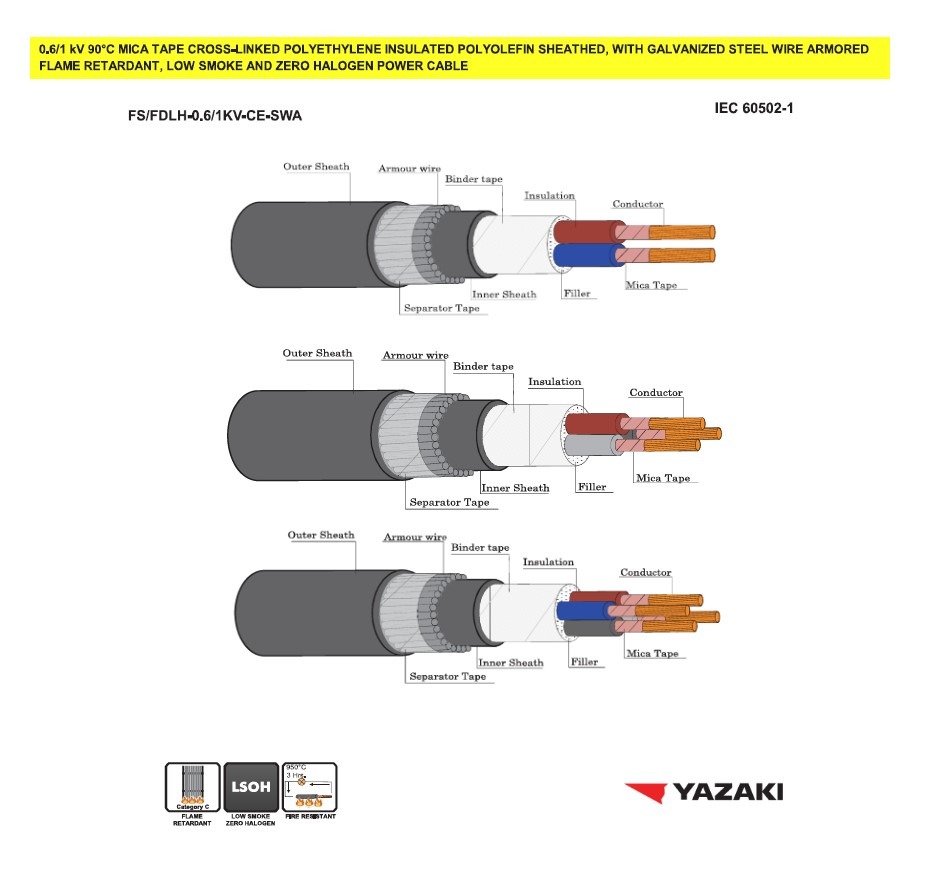

0.6/1 Kv 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED, WITH GALVANIZED STEEL WIRE ARMORED FLAME RETARDANT, LOW SMOKE AND ZERO HALOGEN POWER CABLE

SKU: FS/FDLH-0.6/1KV-CE-SWA Categories: ,

Description

สายไฟ THAI YAZAKI FS/FDLH-0.6/1KV-CE-SWA

0.6/1 Kv 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED, WITH GALVANIZED STEEL WIRE ARMORED FLAME RETARDANT, LOW SMOKE AND ZERO HALOGEN POWER CABLE

Additional information

Conductor

: Non-Compacted and compacted round annealed copper

Multi cores: Sizes 1.5 mm2 up to 400 mm2

Fire Barier Tape

: Mica tape

Insulation

: Cross-Linked polyethylene (XLPE)

Core Identification

2 cores: Blue, Brown
3 cores: Brown, Black, Grey
4 cores: Blue, Brown, Black , Grey

Inner Sheath

: Black low smoke and zero halogen flame retardant polyolefin (ST8)

Armor

: Galvanized steel wires

Sheath

: Orange low smoke and zero halogen flame retardant polyolefin (ST8)

Classification

:Maximum conductor temperature 90°C
: Circuit voltage not exceeding 1,200 volts

Rated Voltage

600 volts between Line to Earth
1000 volts between Line to Line

Testing Voltage

3,500 volts

Reference Standard

: IEC 60502-1, IEC 60228, BS 6387 (Cat.CWZ)
IEC 60332-1, IEC 60332-3-24 (Cat.C), IEC 60754-2
IEC 61034-2
