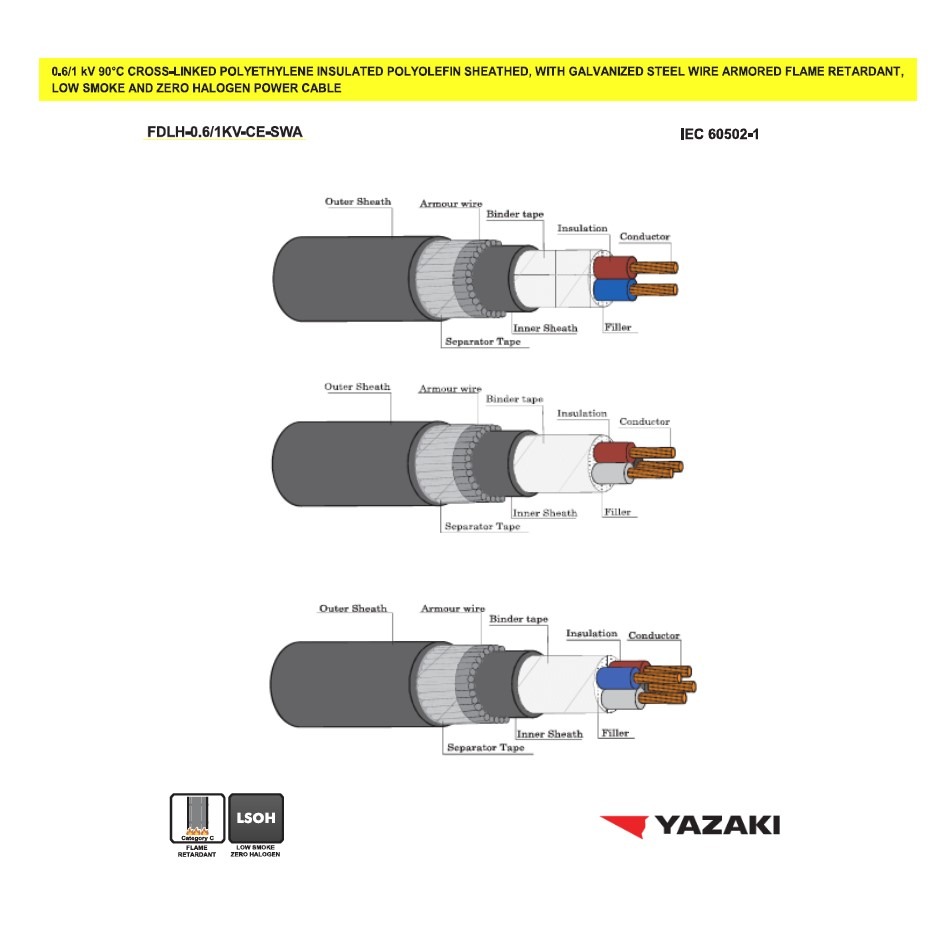

FDLH-0.6/1KV-CE-SWA
0.6/1 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED, WITH GALVANIZED STEEL WIRE ARMORED FLAME RETARDANT, LOW SMOKE AND ZERO HALOGEN POWER CABLE
FDLH-0.6/1KV-CE-SWA
Description
สายไฟ THAI YAZAKI FDLH-0.6/1KV-CE-SWA
0.6/1 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED, WITH GALVANIZED STEEL WIRE ARMORED FLAME RETARDANT, LOW SMOKE AND ZERO HALOGEN POWER CABLE
Additional information
| Conductor | : Non-compacted and compacted round annealed copper |
|---|---|
| Insulation | : Cross Linked polyethylene (XLPE) |
| Core Identification | 2 cores : Blue, Brown |
| Inner Sheath | : Black low smoke and zero halogen flame retardant polyolefin (ST8) |
| Armor | : Galvanized steel wires |
| Sheath | : Black low smoke and zero halogen flame retardant polyolefin (ST8) |
| Classification | : Maximum conductor temperature 90°C |
| Rated Voltage | : 600 volts between Line to Earth |
| Testing Voltage | 3,500 volts |
| Reference Standard | : IEC 60502-1, IEC 60228, IEC 60332-1, |
