CVV or CVV-S

CVV or CVV-S

CVV or CVV-S

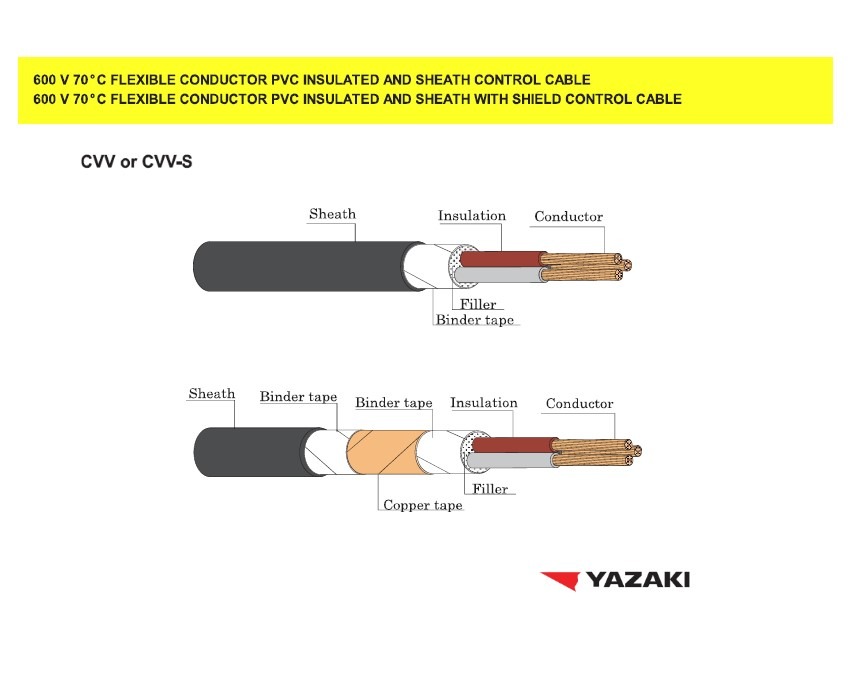

600 V 70°C PVC INSULATED AND SHEATHED CONTROL CABLE
600 V 70°C PVC INSULATED AND SHEATHED WITH SHIELD CONTROL CABLE

ดาวน์โหลดแคตตาล็อก
SKU: CVV or CVV-S Categories: ,

Description

สายไฟ THAI YAZAKI CVV or CVV-S
600 V 70°C PVC INSULATED AND SHEATHED CONTROL CABLE
600 V 70°C PVC INSULATED AND SHEATHED WITH SHIELD CONTROL CABLE

Additional information

Conductor

: Flexibe annealed copper wires
: 2 up to 48 cores  Size : 0.5 mm² up to 6 mm²
Insulation

: Polyvinyl chloride (PVC/C)
Core Identification

2 Cores : Blue and Brown
3 Cores : Brown, Black and Grey
4 Cores : Blue, Brown, Black and Grey
More than 4 cores :
Black with marking numbers, colored white, printed continuously throughout the whole length of insulated wires for the purpose of core identification
Filler

: Polypropylene (non-Hygroscopic material)
Binder Tape and Separator Tape

: Spunbond tape
Shield

: Copper tape
Outer Sheath

: Black polyvinyl chloride (PVC)
Classification

: Maximum conductor temperature 70°C
: Circuit voltage not exceeding 600 Volts
Testing Voltage

: 2,000 Volts
Reference Standard

: THAI YAZAKI STANDARD
